How Acetate Eyewear Frames Are Mass Finished: From Tumbled Matte to Mirror Gloss

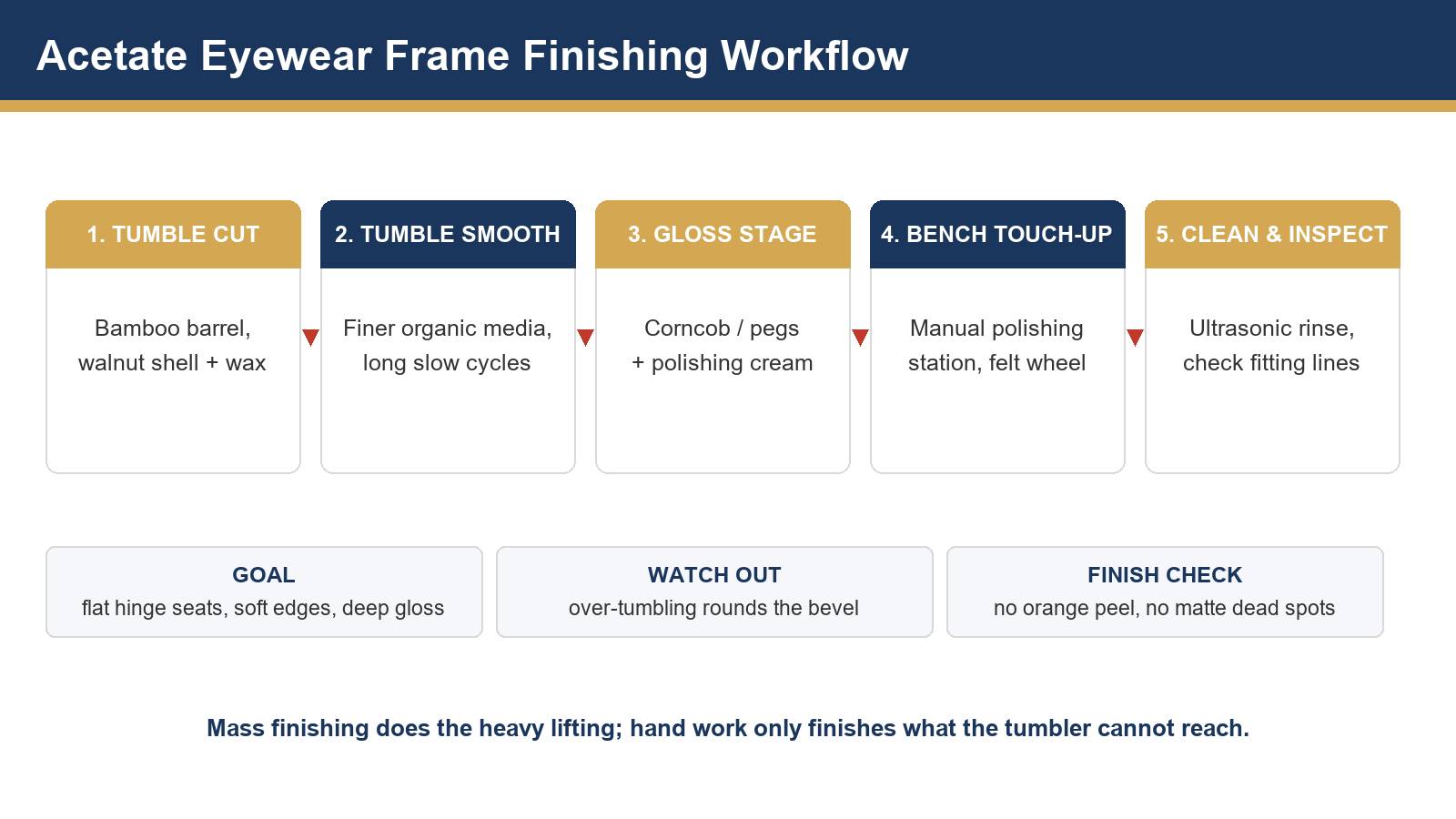

Acetate frame polishing workflow • Barrel tumbling + bench touch-up • A repeatable process for eyewear production

Freshly milled acetate frames come off the CNC looking chalky, with tool marks along the bevels and matte hinge seats. Turning them into the deep, wet-look gloss that defines premium eyewear is a staged process — and the heavy lifting belongs to mass finishing, not hand polishing. Here is the workflow eyewear factories use to finish hundreds of frames per batch with consistent results.

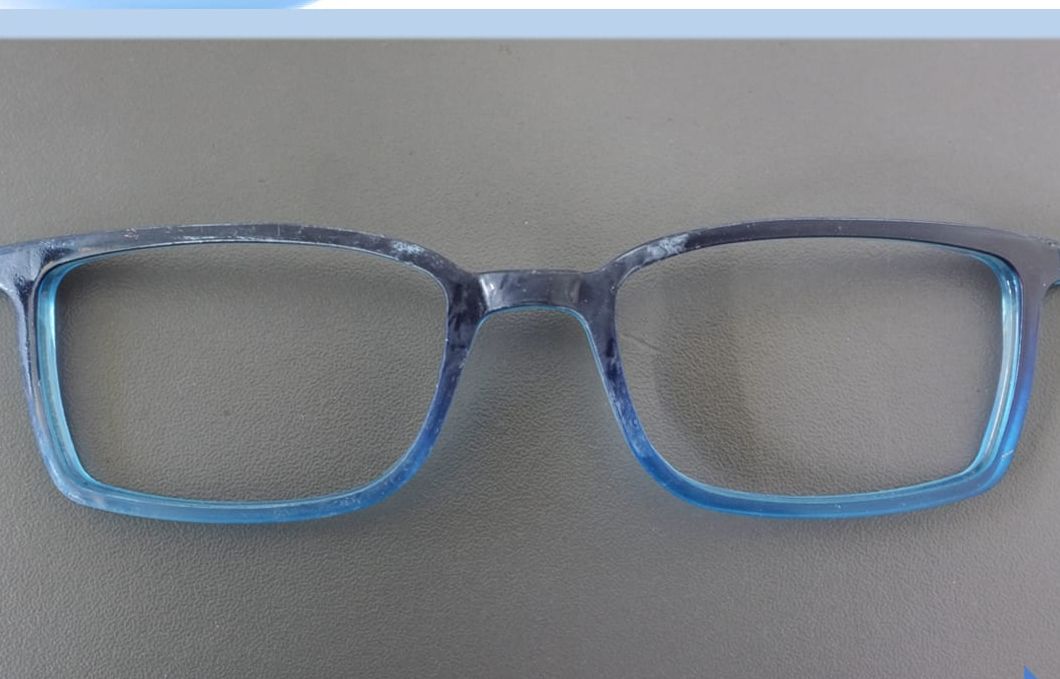

1. Start Point: What a Milled Frame Looks Like

Cutter marks, light stress whitening around routed grooves, and an overall milky haze are normal at this stage. The goal of the following stages is to remove these without changing the frame’s geometry — the bevel angle and lens-seat fit must survive the process.

2. Stage 1–2: Tumble Cutting Then Smoothing

Frames go into a rotary barrel or vibratory bowl filled with organic dry media. The first stage uses coarser walnut shell with a cutting wax to knock down tool marks; the second stage steps down to finer media for uniform smoothing. Long, slow cycles are the norm — acetate responds gradually, and rushing shows up as shiny flat spots on curved surfaces.

• Media: graded walnut shell first, then corncob or wooden pegs — see our walnut shell vs corncob guide.
• Machines: octagonal bamboo barrels give gentle cascading action — described in detail in our bamboo tumbling machine SOP.
• Checkpoints: hinge seats flat, tool marks gone, no whitening left in routed channels.

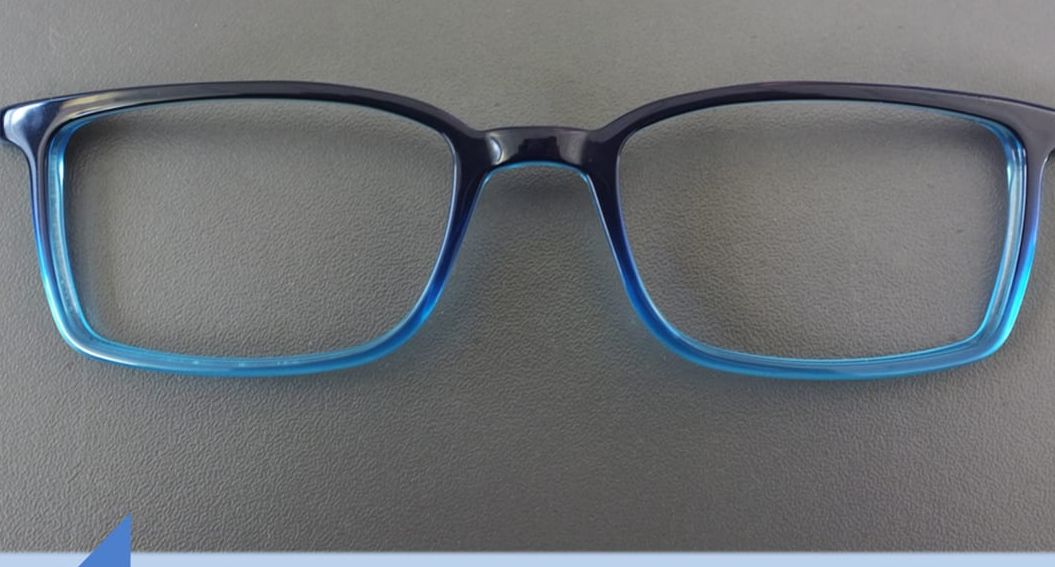

3. Stage 3: The Gloss Stage

Fine corncob or wood pegs charged with polishing cream build the final luster. Compound is dosed little-and-often; overloaded media pastes acetate surfaces and dulls them. Filler-loaded bar compounds made for plastics work best — browse matching products in our finishing compounds range.

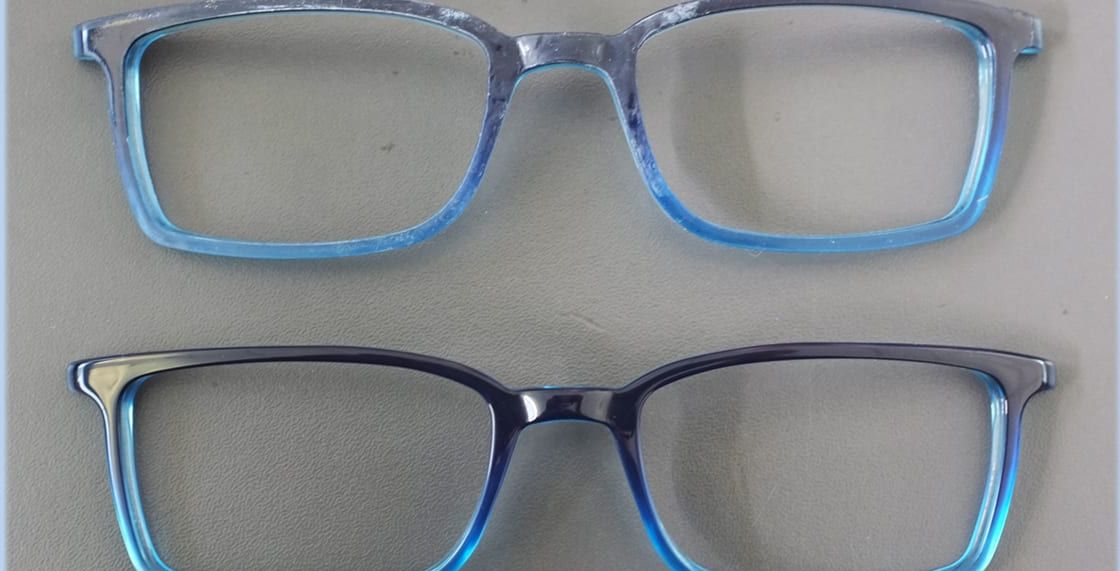

4. The Visible Difference

5. Stage 4: Bench Touch-Up

A single-station manual polishing bench handles what the tumbler cannot: tight fillets at hinges, lens-seat lines, and final edge refinement. Felt and muslin wheels with fine plastic-polishing waxes bring these zones up to the same gloss level as the tumbled surfaces — our single-station polishing machine guide covers the wheel, compound, and speed choices in detail.

6. Stage 5: Cleaning, Inspection and Common Pitfalls

• Clean: ultrasonic rinse removes wax residue from channels and engravings.
• Inspect: under diffused light, look for orange-peel texture, matte dead spots, or rounded bevels.
• Pitfall 1 — over-tumbling: cycles far beyond the recipe round the bevel and soften the front profile. Track cumulative hours.
• Pitfall 2 — dirty media: spent walnut loaded with acetate dust stops cutting and starts coating; refresh media per schedule.
• Pitfall 3 — skipping grit logic: jumping straight to the gloss stage polishes over tool marks instead of removing them.

7. Build Your Own Recipe

Start from published recipes, then tune by sample runs: keep one marked control frame per batch and record cycle hours per stage. For machine options, compare our rotary barrel tumbling machines, and source consumables from our dry finishing media catalog.
