Choosing the right finishing equipment directly affects part quality, cycle time, and operating cost. Many manufacturers select a machine based only on part size or batch volume, without considering part geometry, surface target, material sensitivity, or how the machine type interacts with media motion. A machine that works well for heavy steel castings may damage thin-walled aluminum parts, and a tumbler suited for small batches may be uneconomical for continuous production.
The selection process should start with four questions: What is your part material and starting condition? What surface finish do you need (deburring, polishing, burnishing, or all three)? What is your batch size and production rate? And are your parts sensitive to impact, entanglement, or media lodging? The answers define which machine type, media, and process parameters are viable.
Machine Selection Criteria by Part Type
Each machine type creates a different media motion pattern, which determines what parts it can process effectively. The following table compares the key selection factors:
| Machine Type | Best For | Typical Cycle | Part Sensitivity | Batch Size |
|---|---|---|---|---|

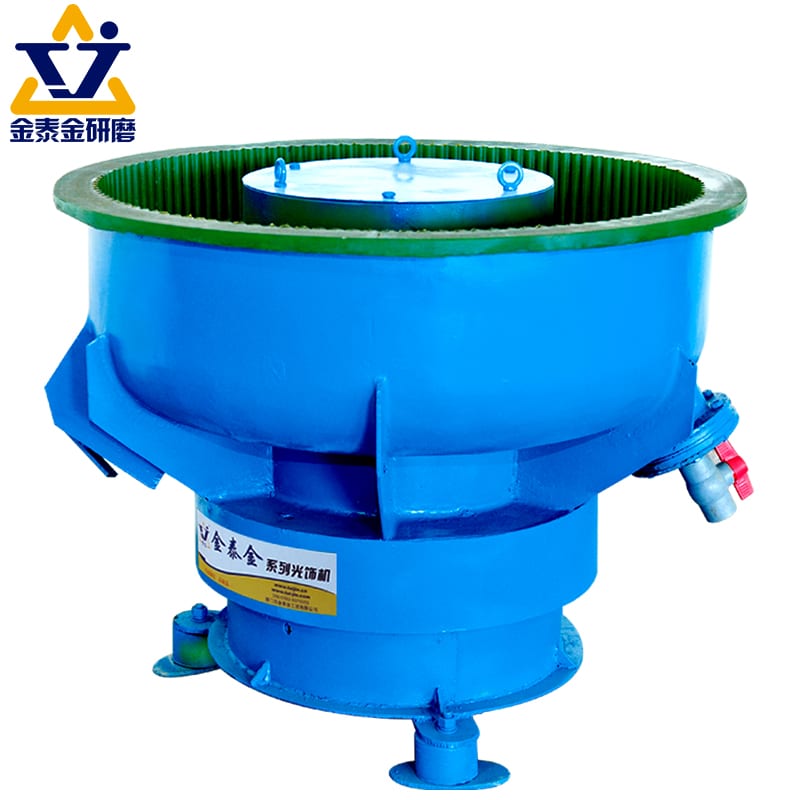

| Vibratory Finisher | General deburring and polishing, mixed batch sizes | 15-60 min | Moderate — suitable for most metal parts | Medium to large (50-500 kg) |
| Barrel Tumbler | Delicate, thin-walled, or small parts that dent easily | 2-12 hours | Low impact — gentle rolling action | Small to medium (5-100 kg) |
| Disc Finisher | Small to medium parts needing fast cycle time | 3-15 min | Moderate to high — centrifugal force is strong | Small (1-20 kg per batch) |
| Magnetic Finisher | Small precision parts, fine features, tight tolerances | 5-30 min | Very gentle — no media-on-part impact | Small (0.1-5 kg per batch) |
| Tub Vibrator | Long, heavy, or large components | 30-120 min | Moderate — good for robust parts | Large (100-1000+ kg) |
Media and Compound Selection for Each Machine Type
Once the machine type is selected, the next decision is media shape, size, material, and compound. The media must match both the machine's motion pattern and the part's surface requirements. Vibratory finishers work with all media types. Barrel tumblers perform best with smaller media that rolls freely. Disc finishers need media that can withstand centrifugal force without breaking. Magnetic finishers use fine steel or stainless steel pins and balls.
- For deburring: use sharp-edged ceramic media in a size that reaches all part features without lodging in cavities.
- For polishing: switch to plastic media or fine ceramic with appropriate compound to achieve the target surface roughness.
- For burnishing: use steel media in a barrel or vibratory finisher for compressive surface finish and bright appearance.
- For drying: after wet processing, use dry finishing media in a dedicated dryer or vibratory dryer.
Common Mistakes When Selecting Finishing Equipment
- Choosing machine capacity based only on part weight. Part geometry, not just weight, determines how many parts fit without damaging each other. Long parts, thin walls, and interlocking shapes require lower loading density.
- Selecting media size before confirming part features. Media that fits in a hole or slot will lodge there. Measure the smallest cavity and choose media larger than that dimension.
- Assuming one machine handles deburring and polishing equally well. Deburring requires aggressive media and faster motion. Polishing requires finer media and gentler action. A variable-speed machine helps, but some compromises are unavoidable.
- Ignoring compound delivery and recirculation. Machines without compound pumps require manual dosing, which leads to inconsistent concentration and surface results.
- Not planning for separation and drying. Manual separation of parts from media adds labor cost and slows production. Integrated separation systems pay for themselves in high-volume operations.
Visual Reference for Process Setup
See the Process in Action
Watch how surface finishing equipment processes parts in a real production environment:
Not sure which machine or media fits your parts? Send us your part material, photos, dimensions, current surface condition, target finish, and batch quantity. We can recommend a machine type, media size and material, compound, and starting process parameters.
